Sherwood Hospital EV Charging Infrastructure

Gigawatt Industries partnered with Pod Point to install 12 twin 7kW chargers at Sherwood Hospital, enabling simultaneous charging for 24 vehicles. This project enhances visitor and staff facilities while supporting the NHS’s sustainability goals with reliable, future-ready EV infrastructure.

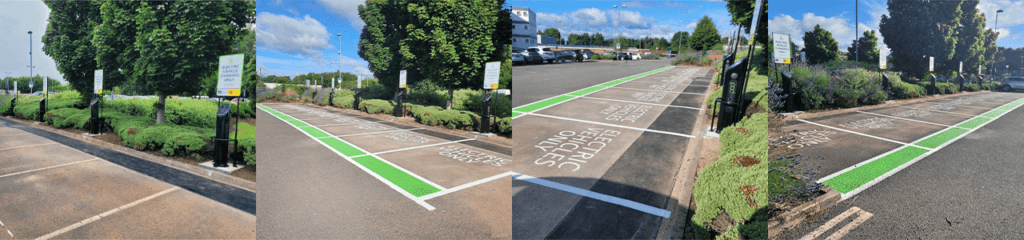

Overview

Gigawatt Industries partnered with Pod Point to deliver a sustainable EV charging solution at Sherwood Hospital, supporting the NHS’s commitment to reducing its environmental impact. By installing 12 twin 7kW chargers, capable of simultaneously charging 24 vehicles, we have enhanced the hospital’s facilities, providing a reliable and convenient charging solution for visitors and staff.

Partnerships

Key Features

12 Twin 7kW Chargers: Supporting simultaneous charging for up to 24 vehicles.
Advanced Power Infrastructure: Equipped with surge protection and PEN fault detection for safety and compliance.
Smart Connectivity: Wi-Fi-enabled chargers with optional 3G/4G capability for real-time monitoring.
Future-Proof Design: Green-marked EV bays and scalable infrastructure ready for future expansion.
Environmentally Conscious: This project supports Sherwood Hospital’s sustainability goals, reducing its carbon footprint.

Outcomes

Scope of Work

As Pod Point’s trusted installation partner, Gigawatt Industries carried out:

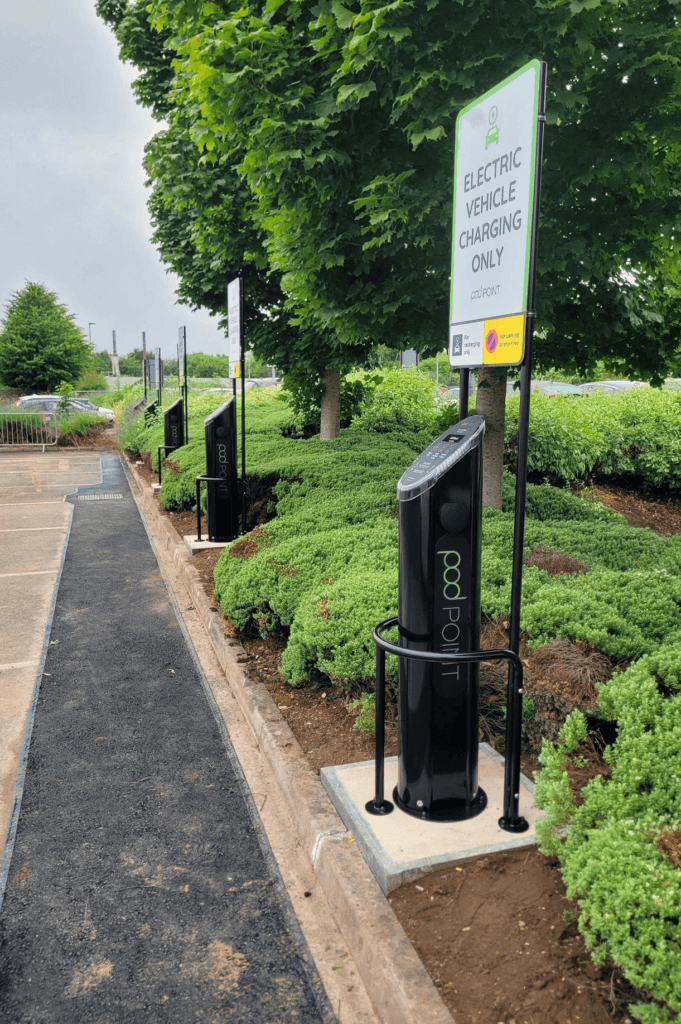

12 Twin Pod Point V7 Chargers Advanced dual-output chargers delivering reliable, fast charging.
Two Feeder Pillar Each fitted with 100A MCCB switch fuses to ensure safe and efficient power distribution.
Cabling and Ducting Over 345m of SWA cabling and 190m of 110mm conduit, ensuring robust connectivity.
Concrete Foundations Reinforced bases for chargers and feeder pillars to ensure long-term stability.

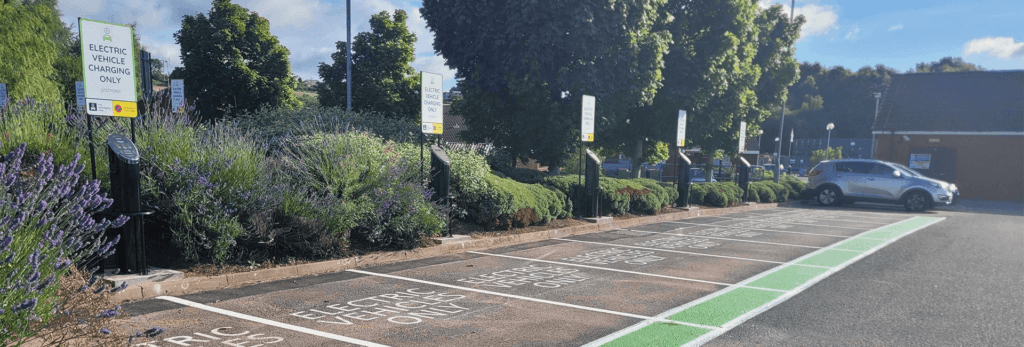

Green-Marked EV Bays Clear markings and signage to reserve spaces exclusively for electric vehicle users.

Charger Specifications

The Pod Point V7 Twin Chargers installed at Sherwood Hospital are designed for commercial applications, offering a perfect blend of reliability and advanced technology. Key features include:

Dual Charging Capability: Each unit provides 7kW per socket, enabling two vehicles to charge simultaneously, making them ideal for busy public spaces.
Universal Type 2 Connectors: Compatible with most electric vehicles, with lockable hinged flaps for secure and weatherproof connections.
Smart Features:
• Wi-Fi-enabled with optional 3G/4G network support for remote monitoring and software updates.
• Integrated smart charging technology to optimise energy use and manage grid demand.
Durability and Safety:
• Rated IP54 for dust and water protection and IK10 for impact resistance, ensuring long-term reliability in outdoor environments.
• Anti-graffiti finish reduces maintenance needs and keeps the units visually appealing.
Energy Monitoring: Built-in metering to track energy usage in real time for efficient reporting and analysis.
Efficient Maintenance: Modular design allows for quicker servicing and reduced downtime.

Electrical Infrastructure

The charging infrastructure is supported by two feeder pillars equipped with:

Civil Engineering Works

Gigawatt Industries also undertook detailed civil works, including:

Implementation Process

1

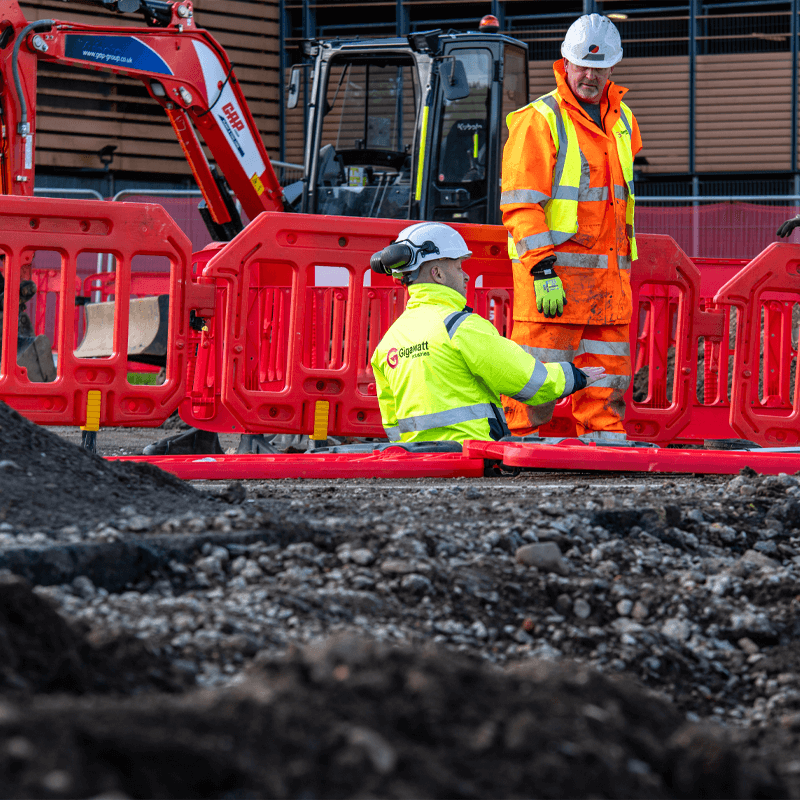

Preliminary Groundworks

Pre-excavation testing, trenching, and foundation preparation were carried out, ensuring a secure base for all installations.

2

Infrastructure Installation

Placement of feeder pillars, power units, and floodlights, alongside precise ducting and cable routing.

3

Electrical Installation

Installation and connection of chargers and testing to ensure compliance with operational standards.

4

Final Touches

Redesign of car park bays, application of clear markings, and installation of protective bollards and signage.

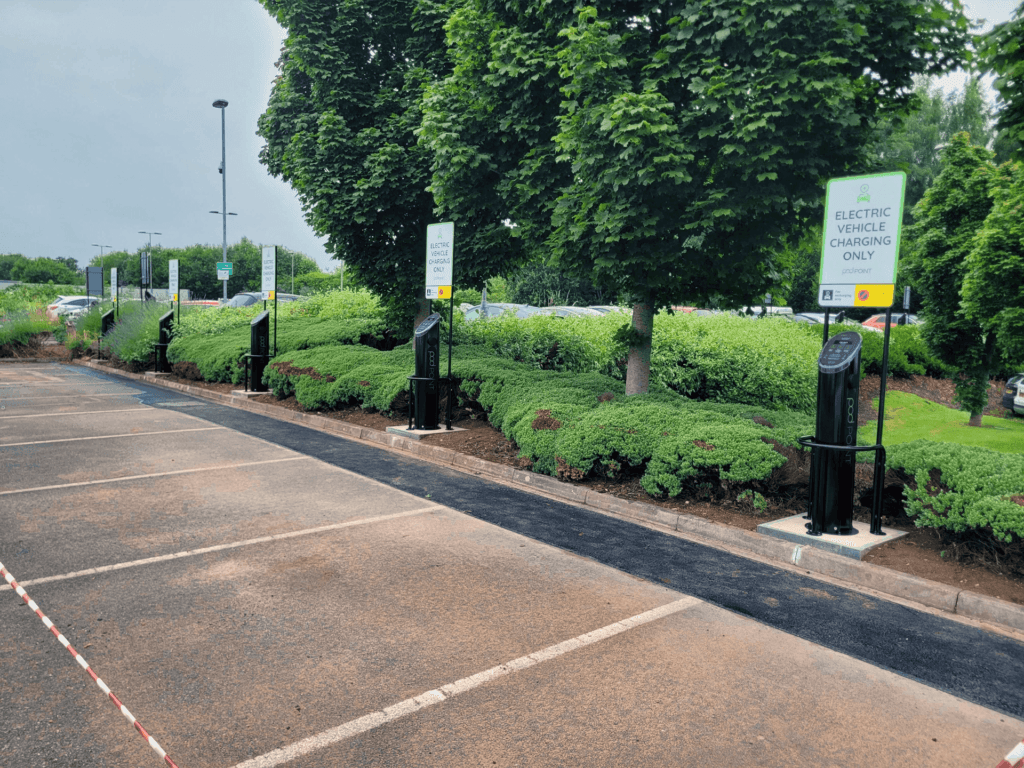

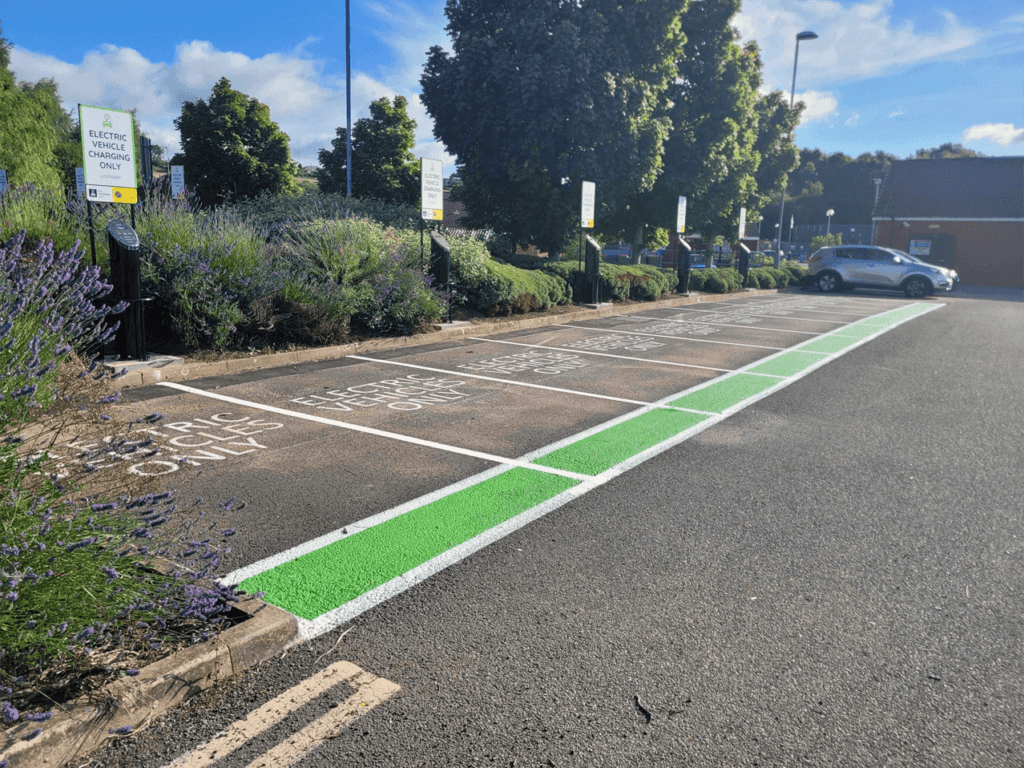

Project Gallery
